Frame Materials
High-quality AISI 304 polished stainless steel or black metal with a polymer powder coating for corrosion resistance are used
Protection and Climate Control
Dust and moisture protection ratings range from IP41 to IP45. Full-height outdoor models operate reliably in temperatures ranging from -30°C to +70°C
Aisle Width
Standard width is 500–600 mm. Swing-door models with pedestal doors support an adjustable width of up to 900 mm, which meets accessibility standards for people with disabilities

Description

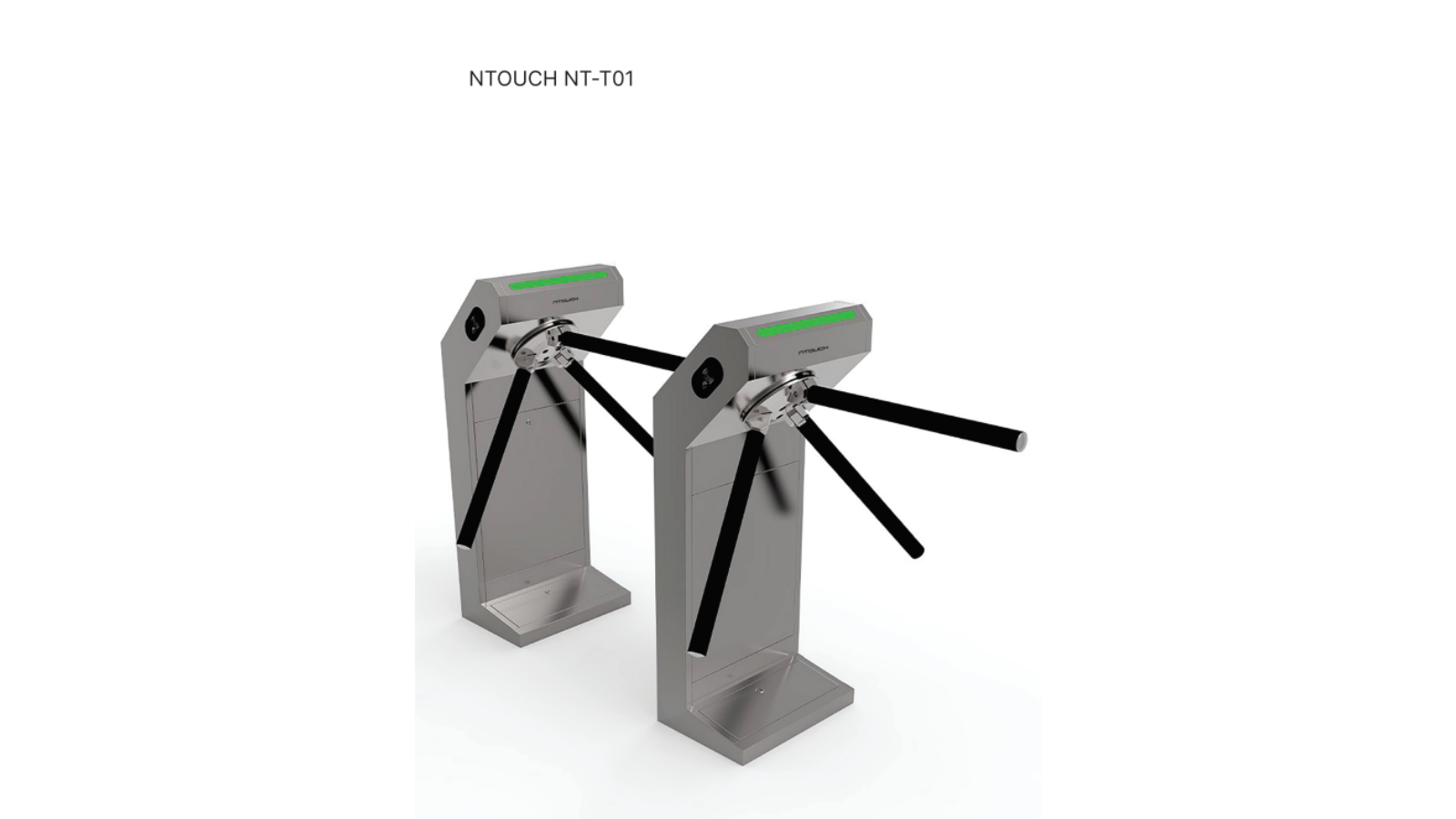

1. Tripod Turnstiles (NT-T01 Series)
The most compact and affordable type of equipment with three rotating arms.
• Purpose: Offices, educational institutions, small businesses.
• Pros: Low cost, minimal dimensions, easy installation.
• Limitations: Do not form a continuous passageway; they are easy to jump over or pass items through.

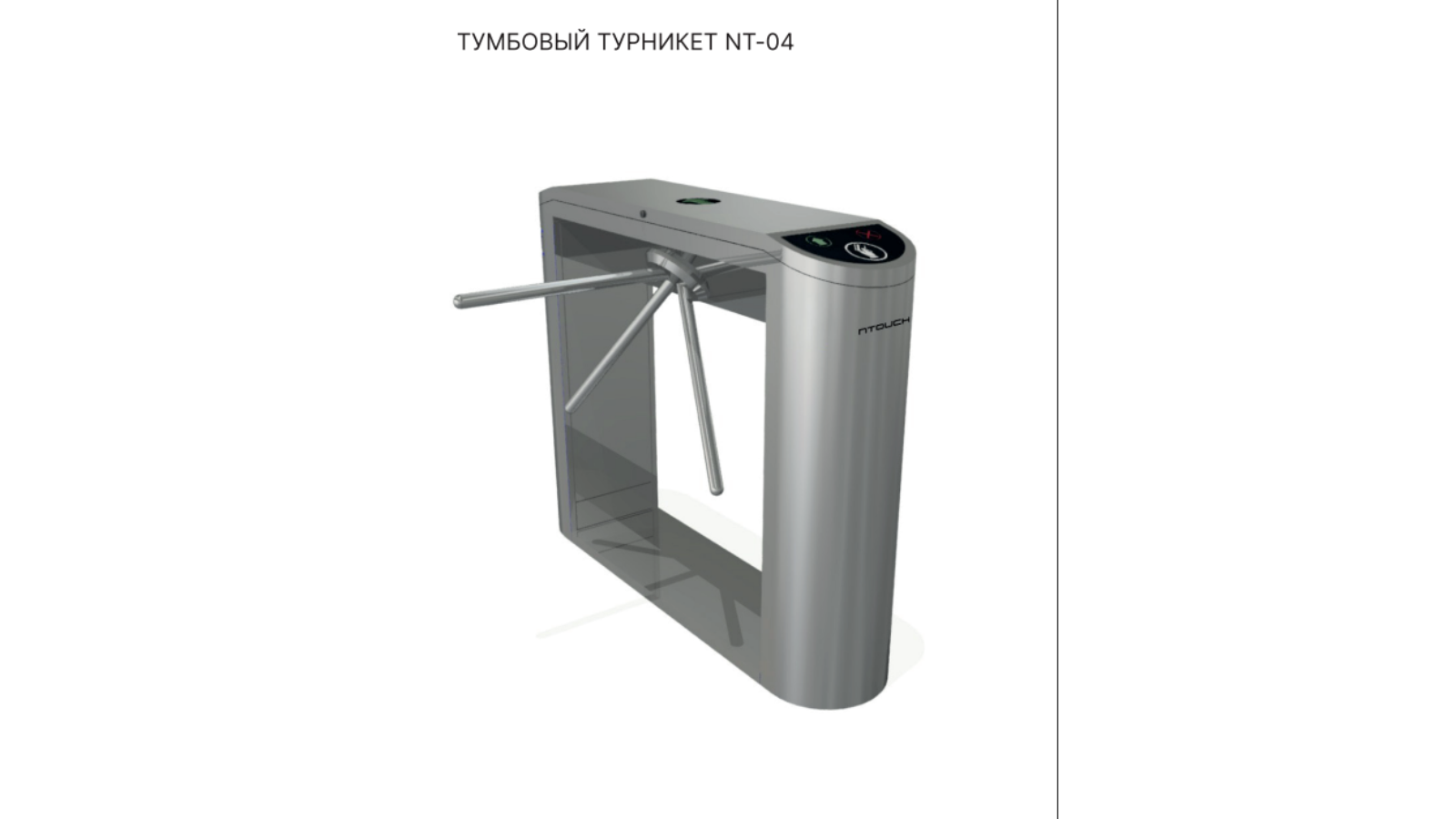

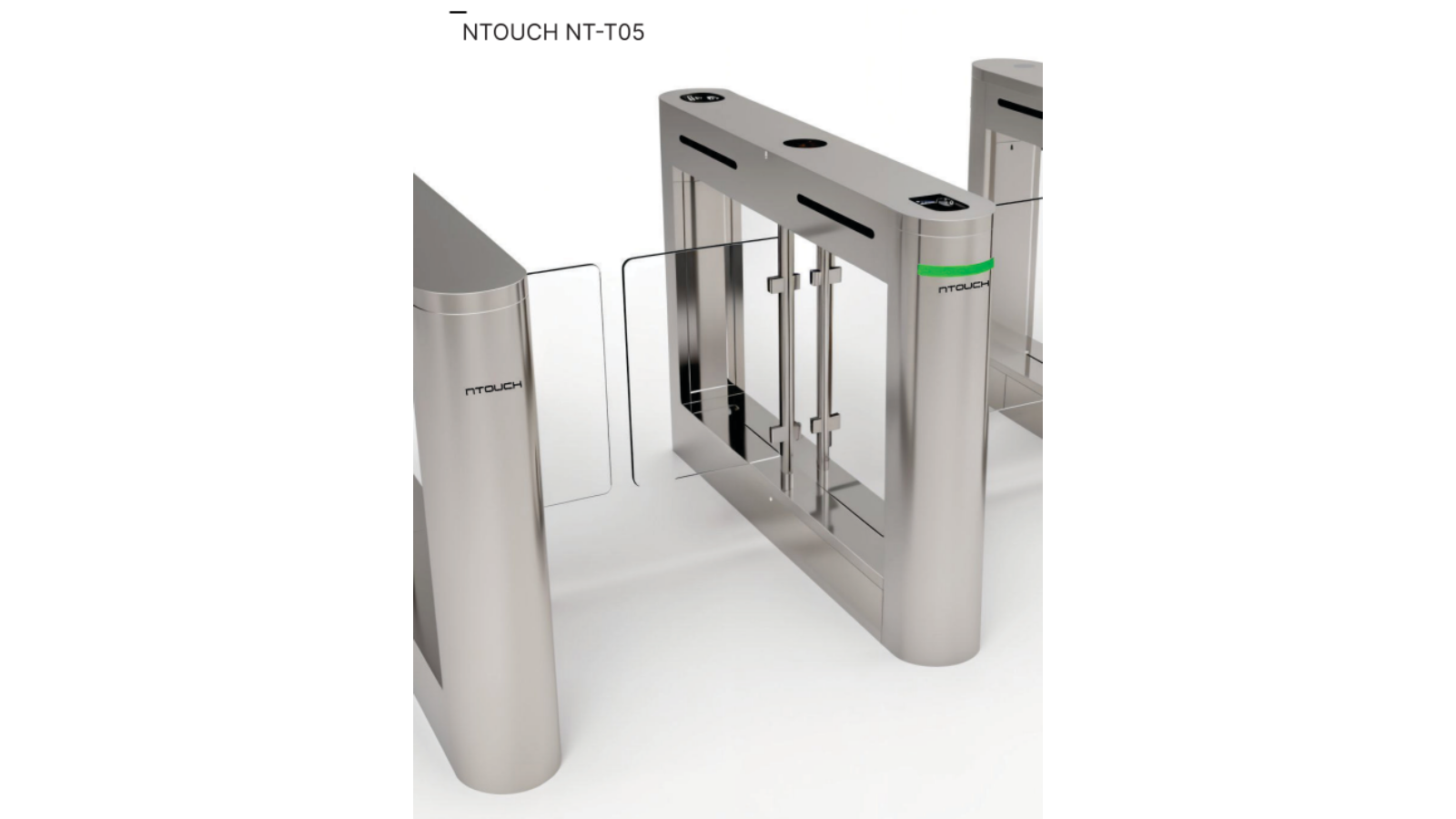

2. Pedestal Turnstiles (NT02, NT04, NT-T05 Series)
Durable designs with an elongated, pedestal-style body. Available with either classic arms or glass/acrylic swing doors.
• Purpose: Business centers, banks, large factories, sports complexes.
• Pros: High throughput (up to 50 people/min), aesthetically pleasing design, clearly separates the flow of people one at a time.
• Limitation: Require more space for installation.

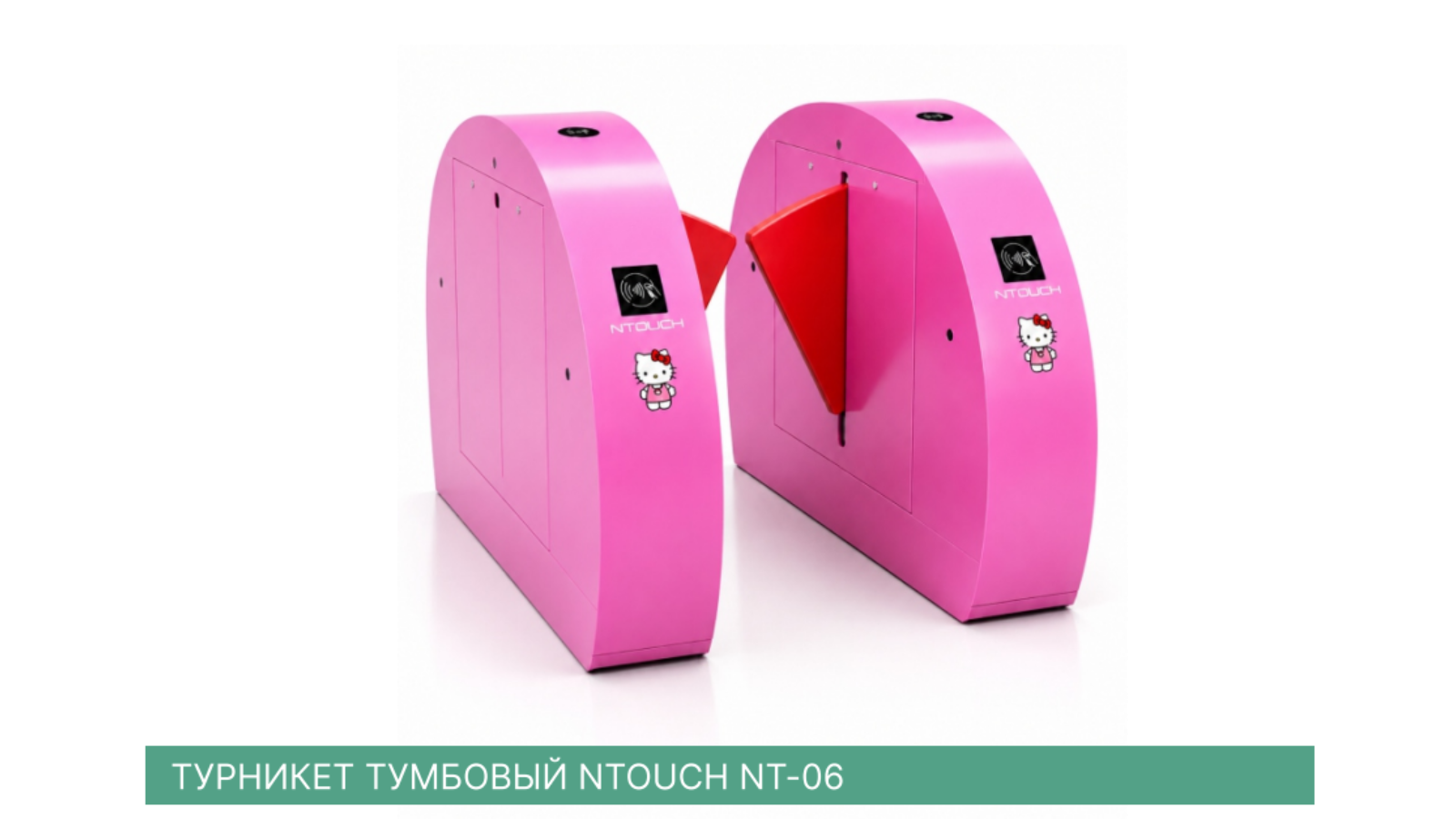

3. Specialized Child Turnstiles (NT06 Series)
Pedestal models with low retractable or hinged doors, designed specifically for educational institutions.
• Purpose: Kindergartens, schools, and development centers.
• Advantages: Injury prevention (optical sensors prevent children from getting trapped), ergonomic height for children.
• Limitation: Indoor use only.

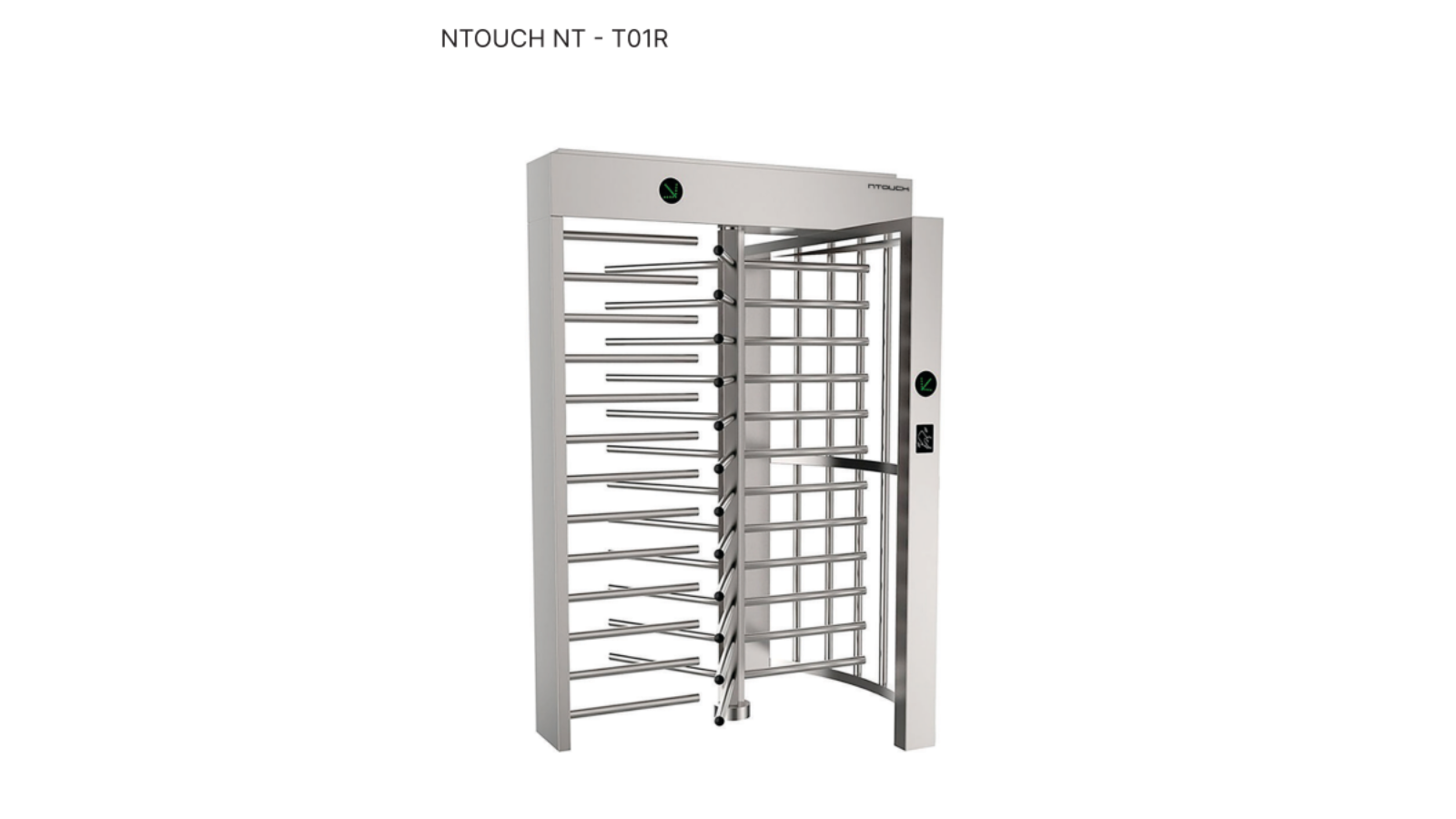

4. Full-Height Rotary Turnstile Systems (NT05 / NT-T01R Series)
Large-scale structures as tall as a person (over 2 meters) with rotating blades.
• Purpose: Sensitive facilities, factory checkpoints, strategic enterprises, stadiums.
• Advantages: Maximum level of security, complete impossibility of unauthorized passage or climbing. • Limitation: Low speed of passage (up to 15–20 people/min) and high cost.

Exporter Information

New Technologies - Taraz LLP

Taraz, Kazakhstan

2013
The company was established
2000
Successfully implemented projects

More from this company
